TS-1710

10″PA SPEAKER
NON-PRESSED CONE
CLOTH EDGE
VOICE COIL(TIL):3″
MAGNET:80OZ
MAX POWER:600W
FREQ.RESP.:50-4000Hz
SPL:94dB/W/M
IMPEDANCE:8 OHM

TS-1712

12″PA SPEAKER
NON-PRESSED CONE
CLOTH EDGE
VOICE COIL(TIL):4″
MAGNET:110OZ
MAX POWER:800W
FREQ.RESP.:40-4000Hz
SPL:95dB/W/M
IMPEDANCE:8 OHM

TS-1715

15″PA SPEAKER
NON-PRESSED CONE
CLOTH EDGE
VOICE COIL(TIL):4″
MAGNET:110OZ
MAX POWER:1000W
FREQ.RESP.:30-4000Hz
SPL:97dB/W/M
IMPEDANCE:8 OHM

TS-1718

18″PA SPEAKER
NON-PRESSED CONE
CLOTH EDGE
VOICE COIL(TIL):4″
MAGNET:110OZ
MAX POWER:1200W
FREQ.RESP.:25-4000Hz
SPL:99dB/W/M
IMPEDANCE:8 OHM

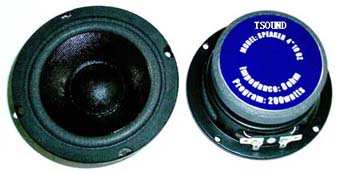

TS-410

4" hi fi woofer
PAPERCONE
FOAM EDGE
Voice Coil(AL): 1″
MAGNET: 10 OZ
MAX POWER: 200W
Freq.Resp: 60-6KHz
SPL: 88 dB/W/M
IMP..: 8 OHM

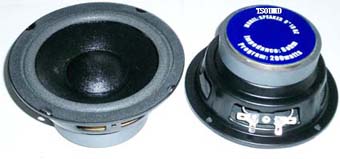

TS-510

5" hi fi woofer
PAPERCONE
FOAM EDGE
Voice Coil(AL): 1″
MAGNET: 10 OZ
MAX POWER: 200W
Freq.Resp: 60-6KHz
SPL: 88 dB/W/M
IMP.: 8 OHM

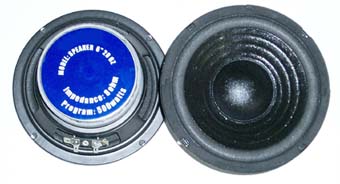

TS-620

6" hi fi woofer
PAPERCONE
FOAM EDGE
Voice Coil(AL): 1″
MAGNET: 20 OZ
MAX POWER: 500W
Freq.Resp: 60-6KHz
SPL: 88 dB/W/M
IMP.: 8 OHM

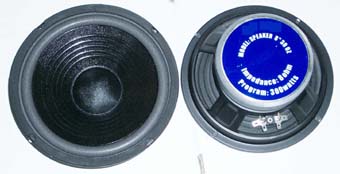

TS-830

8" hi fi woofer
PAPERCONE
FOAM EDGE
Voice Coil(AL): 1″
MAGNET: 30 OZ
MAX POWER: 500W
Freq.Resp: 55-5KHz
SPL: 89 dB/W/M
IMP.: 8 OHM

TS-1020

10" woofer
PAPER CONE FOAM EDGE
FREQ.RESP.:50HZ-4500HZ
MAX POWER:200W
VOICE COIL(AL):1.5"
MAGNET:30 OZ
SPL:90dB/W/M
IMPEDANCE: 4 or 8 OHM

TS-1220

12" woofer
PAPER CONE FOAM EDGE
FREQ.RESP.:40HZ-4000HZ
MAX POWER:250W
VOICE COIL(AL):1.5"
MAGNET:30 OZ
SPL:91dB/W/M
IMPEDANCE: 4 or 8 OHM

TS-1520

15" woofer
PAPER CONE FOAM EDGE
FREQ.RESP.:30HZ-3000HZ
MAX POWER:300W
VOICE COIL(AL):1.5"
MAGNET:36 OZ
SPL:91dB/W/M
IMPEDANCE: 4 or 8 OHM

TS-1680

8″PA SPEAKER
NON-PRESSED CONE
CLOTH EDGE
VOICE COIL(TIL):1.5″
MAGNET:30OZ
MAX POWER:300W
FREQ.RESP.:60-5000Hz
SPL:93dB/W/M
IMPEDANCE:8 OHM

TS-1610

10″PA SPEAKER
NON-PRESSED CONE
CLOTH EDG
VOICE COIL(TIL):2″
MAGNET:40OZ
MAX POWER:400W
FREQ.RESP.:50-5000Hz
SPL:95dB/W/M
IMPEDANCE:8 OHM

TS-1612

12″PA SPEAKER
NON-PRESSED CONE
CLOTH EDG
VOICE COIL(TIL):2.5″
MAGNET:50OZ
MAX POWER:500W
FREQ.RESP.:50-7000Hz
SPL:96dB/W/M
IMPEDANCE:8 OHM

15″PA SPEAKER
NON-PRESSED CONE
CLOTH EDG
VOICE COIL(TIL):3″
MAGNET:80OZ
MAX POWER:700W
FREQ.RESP.:30-4000Hz
SPL:97dB/W/M
IMPEDANCE:8 OHM
