Model No: TPA1800

Description: 18"
Nominal Impedance: 8 ohms
Frequency Response: 30-2100 HZ
Power Handling(Continuous): 250 watts
Power Handling(max): 750 watts
Sensitivity: 98.0 dB
Voice Coil Diameter: 4"
Magnet Weight: 122.8 OZ
Net Weight: 12.29kgs(27.04lbs)
Vmax: 3.5 mm
Vas: 350 L
Qts: 0.418
Mounting Depth : 7.09''(180mm)
Mounting Diameter : 16.97''(431mm)



Model No: TPA1500

Description: 15"
Nominal Impedance: 8 ohms
Frequency Response: 41-3500 HZ
Power Handling(Continuous): 200 watts
Power Handling(max): 600 watts
Sensitivity: 100.0 dB
Voice Coil Diameter: 3"
Magnet Weight: 122.8 OZ
Net Weight: 10.48kgs(23.06lbs)
Vmax: 1.5 mm
Vas: 215 L
Qts: 0.233
Mounting Depth : 6.18''(157mm)
Mounting Diameter : 13.98''(355mm)


Model No: TPA15

Description: 15"
Nominal Impedance: 8 ohms
Frequency Response: 35-3000 HZ
Power Handling(Continuous): 200 watts
Power Handling(max): 600 watts
Sensitivity: 96.0 dB
Voice Coil Diameter: 3"
Magnet Weight: 71.2 OZ
Net Weight: 6.34kgs(13.95lbs)
Vmax: 1.5 mm
Vas: 250 L
Qts: 0.428
Mounting Depth : 6.14''(156mm)
Mounting Diameter : 13.89''(353mm)



Model No: TPA12

Description: 12"
Nominal Impedance: 8 ohms
Frequency Response: 45-4000 HZ
Power Handling(Continuous): 150 watts
Power Handling(max): 450 watts
Sensitivity: 96.0 dB
Voice Coil Diameter: 2.5"
Magnet Weight: 61.7 OZ
Net Weight: 5.15kgs(11.33lbs)
Vmax: 0.5 mm
Vas: 131 L
Qts: 0.456
Mounting Depth : 5.12''(130mm)
Mounting Diameter : 11.02''(280mm)

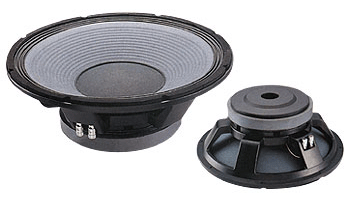

MODEL SW-12L SW-15L SW-18L
Description: 12" 15" 18"
Nominal Impedance: 8 ohms 8 ohms 8ohms
Frequency Response: 37-2000HZ 30-1600HZ 28-1500HZ
Power Handling(Continuous): 300 watts 325 watts 350 watts
Power Handling(Peak): 750 watts 815 watts 875 watts
Sensitivity: 93.8 dB 97.0 dB 97.0 dB
Voice Coil Diameter: 4" 4" 4"
Magnet Weight: 122.8 OZ 122.8 OZ 122.8 OZ
Net Weight: 10.45 kg(22.99 lbs) 11.3 kg(24.86 lbs) 12.19 kg(26.82 lbs)
Bl: 21.29 TM 20.35 TM 21.13 TM
Vas: 62.0 L 138.02 L 200.62 L
Qts: 0.32 0.48 0.42
Mounting Depth: 5.49"(139.5mm) 6.43"(163.4mm) 8.87"(225.39mm)
Mounting Diameter: 11.12"(282.5mm) 14.04"(356.5mm) 16.71"(424.5mm)

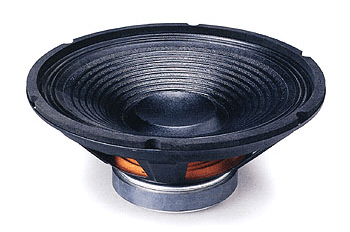

SPECIFICATIONS: SW30005-8 SW38003-8
SIZE: 12" 15"
SPL 1M(2.83V): 92dB 95dB
FO(HZ): 44 34
RESPONSE(HZ): fo-6500 fo-5000
NOM.IMP(ohm): 8 8
VOICE COIL: 1.5" 2"
MAGNET SIZE 38.5 55.2
MAXIMUM POWER(Watt): 220 250
BL(TM): 12.3 16.6
VAS(L): 88.9 224
Qms: 8.5 7.3
Qes: 0.76 0.56
Qts: 0.69 0.51

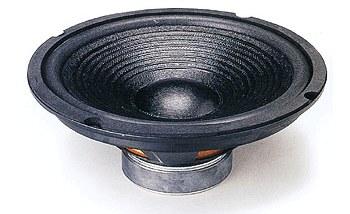

SPECIFICATIONS: SW2006-4 SW2508-4 SW3005-4 SW3801-4
SIZE: 8" 10" 12" 15"
SPL 1M(2.83V): 90dB 90dB 89dB 91dB
FO(HZ): 46.4 36.7 29 26.3
RESPONSE(HZ): fo-10000 fo-7200 fo-6500 fo-4200
NOM.IMP(ohm): 4 4 4 4
VOICE COIL: 1" 1" 1.5" 1.5"
MAGNET SIZE 15.9 21.2 28.7 38.5
MAXIMUM POWER(Watt): 80 100 120 150
BL(TM): 5.16 4.95 6.64 8.83
VAS(L): 42 105 212 357
Qms: 3.26 4.02 3.98 3.88
Qes: 0.77 0.88 0.81 0.77
Qts: 0.63 0.72 0.68 0.64
