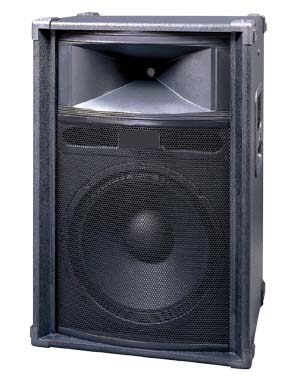

PAO-121 is a two-way speaker system which
is composed of 12" bass unit and a 1.4" dome compression
driver. With the well engineered woofer and accurate crossover point,
the speaker provides excellent sound quality and extra power. The
speaker cabinet is designed with innovative technology which provide
reliable reinforcement and long lasting outlook. The speaker is
suitable for outdoor or indoor Disco, Karaoke, concert and conferencing.
Features:
Compression Driver 35mm Titanium dome and copper coated aluminium
round wire voice coil
12" Woofer 50mm KSV former with pure copper wire voice coil
Cabinet 18mm MDF with PVC cloth finishing
Handle Plastic handle for carrying and supporting
Horn Well engineering plastic horn
Specifications:
Power (Peak): 200 Watts
Power (RMS): 160 Watts
Frequency Response: 70Hz ~ 21kHz
Nominal Impedance: 8 ohm
Sensitivity: 96dB
Crossover point: 2.2kHz
Dimensions (HxWxD): 680 x 380 x 440mm
Weight:25kg
Cabinet materials: 18mm MDF
Finishing: PVC cloth
Connectors: 6.35mm binding post Neutrik Speakon 4
Accessories: Plastic handle and support
PAO-151
15" two way speaker system
PAO-151 is a two-way speaker system which
is composed of 15" bass unit and a 1.75" dome compression
driver. With the well engineered woofer and accurate crossover point,
the speaker provides excellent sound quality and extra power. The
speaker cabinet is designed with innovative technology which provide
reliable reinforcement and long lasting outlook. The speaker is
suitable for outdoor or indoor Disco, Karaoke, concert and conferencing.
Features:
Compression Driver 45mm Titanium dome and copper coated aluminium
round wire voice coil
15" Woofer 63mm KSV former with pure copper wire voice coil
Cabinet 18mm MDF with PVC cloth finishing
Handle Plastic handle for carrying and supporting
Horn Well engineering plastic horn
Specifications:
Power (Peak) 250 Watts
Power (RMS) 200 Watts
Frequency Response 65Hz ~ 21kHz
Nominal Impedance 8 ohm
Sensitivity 98dB
Crossover point 2.2kHz
Dimensions (HxWxD) 750 x 400 x 500mm
Weight 30.5kg
Cabinet materials 18mm MDF
Finishing PVC cloth
Connectors 6.35mm binding post Neutrik Speakon 4
Accessories Plastic handle and support

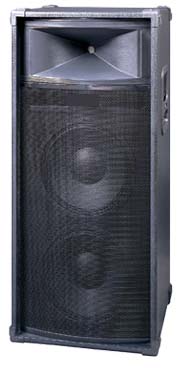

PAT-122
Dual 12" two way speaker system
PAT-122 is a two-way speaker system which
is composed of dual 12" bass unit and a 1.4" dome compression
driver. With the well engineered woofer and accurate crossover point,
the speaker provides excellent sound quality and extra power. The
speaker cabinet is designed with innovative technology which provide
reliable reinforcement and long lasting outlook. The speaker is
suitable for outdoor or indoor Disco, Karaoke, concert and conferencing.
Features:
Compression Driver 35mm Titanium dome and copper coated aluminium
round wire voice coil
12" Woofer 50mm KSV former with pure copper wire voice coil
Cabinet 18mm MDF with PVC cloth finishing
Handle Plastic handle for carrying and supporting
Horn Well engineering plastic horn
Specifications:
Power (Peak) 250 Watts
Power (RMS) 200 Watts
Frequency Response 60Hz ~ 21kHz
Nominal Impedance 4 ohm
Sensitivity 99dB
Crossover point 2.2kHz
Dimensions (HxWxD) 1000 x 420 x 440mm
Weight 39.5kg
Cabinet materials 18mm MDF
Finishing PVC cloth
Connectors 6.35mm binding post Neutrik Speakon 4
Accessories Plastic handle
PAT-152
Dual 15" two way speaker system
BR-152 is a two-way speaker system which
is composed of dual 15" bass unit and a 1.75" dome compression
driver. With the well engineered woofer and accurate crossover point,
the speaker provides excellent sound quality and extra power. The
speaker cabinet is designed with innovative technology which provide
reliable reinforcement and long lasting outlook. The speaker is
suitable for outdoor or indoor Disco, Karaoke, concert and conferencing.
Features:
Compression Driver 45mm Titanium dome and copper coated aluminium
round wire voice coil
15" Woofer 63mm KSV former with pure copper wire voice coil
Cabinet 18mm MDF with PVC cloth finishing
Handle Plastic handle for carrying and supporting
Horn Well engineering plastic horn
Specifications:
Power (Peak) 350 Watts
Power (RMS) 300 Watts
Frequency Response 55Hz ~ 21kHz
Nominal Impedance 4 ohm
Sensitivity 100dB
Crossover point 2.2kHz
Dimensions (HxWxD) 1160 x 440 x 500mm
Weight 51kg
Cabinet materials 18mm MDF
Finishing PVC cloth
Connectors 6.35mm binding post Neutrik Speakon 4
Accessories Plastic handle

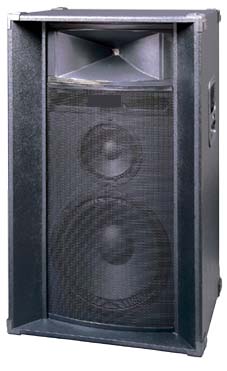

PAS-123
12" three way speaker system
PAS-123 is a three-way speaker system
which is composed of 12" bass unit, 6" mid-range and a
1.4" dome compression driver. With the well engineered woofer
and accurate crossover point, the speaker provides excellent sound
quality and extra power. The speaker cabinet is designed with innovative
technology which provide reliable reinforcement and long lasting
outlook. The speaker is suitable for outdoor or indoor Disco, Karaoke,
concert and conferencing.
Features:
Compression Driver 35mm Titanium dome and copper coated aluminium
round wire voice coil
6" Mid-range 30mm ASV former with pure copper wire voice coil
12" Woofer 50mm KSV former with pure copper wire voice coil
Cabinet 18mm MDF with PVC cloth finishing
Handle Plastic handle for carrying and supporting
Horn Well engineering plastic horn
Specifications:
Power (Peak) 200 Watts
Power (RMS) 150 Watts
Frequency Response 65Hz ~ 21kHz
Nominal Impedance 8 ohm
Sensitivity 97dB
Crossover point 3kHz
Dimensions (HxWxD) 870 x 440 x 580mm
Weight 42.5kg
Cabinet materials 18mm MDF
Finishing PVC cloth
Connectors 6.35mm binding post Neutrik Speakon 4
Accessories Plastic handle and support
PAS-153
15 " three way speaker system
PAS-153 is a three-way speaker system
which is composed of 15" bass unit, 8" mid-range and a
1.75" dome compression driver. With the well engineered woofer
and accurate crossover point, the speaker provides excellent sound
quality and extra power. The speaker cabinet is designed with innovative
technology which provide reliable reinforcement and long lasting
outlook. The speaker is suitable for outdoor or indoor Disco, Karaoke,
concert and conferencing.
Features:
Compression Driver 45mm Titanium dome and copper coated aluminium
round wire voice coil
8" Mid-range 25mm ASV former with pure copper wire voice coil
15" Woofer 63mm KSV former with pure copper wire voice coil
Cabinet 18mm MDF with PVC cloth finishing
Handle Plastic handle for carrying and supporting
Horn Well engineering plastic horn
Specifications:
Power (Peak) 250 Watts
Power (RMS) 200 Watts
Frequency Response 55Hz ~ 21kHz
Nominal Impedance 8 ohm
Sensitivity 98dB
Crossover point 3kHz
Dimensions (HxWxD) 980 x 480 x 600mm
Weight 51kg
Cabinet materials 18mm MDF
Finishing PVC cloth
Connectors 6.35mm binding post Neutrik Speakon 4
Accessories Plastic handle and support
PA-1000M 10" two way speaker system
Specifications:
Power (Peak)
Power (RMS) 100 Watts
Frequency Response 60Hz ~ 20kHz
Nominal Impedance 8 ohm
Sensitivity 100dB
Crossover point 3kHz
Dimensions (HxWxD) 370 x 385 x 520mm
Weight 17kg
Components:10" + HORN
