Features:
6-24 Channel mono (MIC/LINE/INSETER) input
2 Channel stereo input
Each Channel with PAD, Gain, EQ control
EAch Channel with Effect control
EAch Channel with DC 48V supply
2 AUX input and output
Main (L & R) and SUB output
Main and SUB output level indicator
High quality DSP EFFECT, lt provides the user with the
Quasi-professional 64 effect processing modes and with
Effect level Fader.
With power amplifier(2×200 W @ 8 ohms)
TYPE
M2006
M2008
M2010
M2012
M2016
CHANNEL
6
8
10
12
16
M-2000 MIXERS
6-16 mic input, each with inchneal potentiometer, 20dB attenuation,
wave distortion by LED indicator, with High, Middle, Low EQ.
With 2*7 graphic equalizers.
2-Aux input and CD/tape input.
Digital echo with 16 bit displaying of delaying time from 24.6
ms to 393.2 ms.
* Mic input: 2KΩ-60dB
* Line input: 47KΩ-20dB
* Aux input: 47KΩ-10dB
* CD/tape input: 47KΩ-10dB
* L/R output: 600Ω +4dB(max: +22dB)
* Main output: 600Ω +4dB(max: +22dB)
6-16 mic input, each with inchneal potentiometer, 20dB attenuation,
wave distortion by LED indicator, with High, Middle, Low DQ.
With 2*7 graphic equalizers.
With power ampligier.
Digital echo with 16 bit displaying of delaying time from 24.6
ms to 393.2 ms.
* Mic input: 2KΩ -60dB
* Line input: 47KΩ -20dB
* Aux input: 47KΩ -10dB
* CD/TAPE input: 47KΩ -10dB
* Line output: 600Ω +4dB(max: +22dB)
* Line main output: 600Ω +4dB(max: +22dB)
* Monitor output: 600Ω +4dB(max: +22dB)
* Earphone output: 32Ω 3mw(max: 10mw)
* Stereo power: 2*200w(8Ω)
* Distortion: ≤0.05% 20Hz-20KHz
* Frequency speciality: ±0.5dB 20Hz-20KHz
* Mic Channel noise: ≤ -120dB
* Channel segregation: ≥56dB

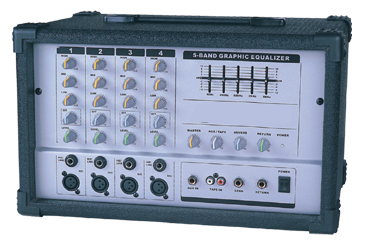

MP740
Features:
4channel mono (Mic, Line) inputs
Mono 3 band EQ (Hi, Mid, Low)control
Each Channel with EFF and LEVEL control
Digital effect with reverb control
Effect withsend and return connector
AUX and tape inputs with level control
Master output withstereo5 band graphic equalzer
Output with 1/4" jack connectors
With power amplifier(2X200 W @4 ohms)

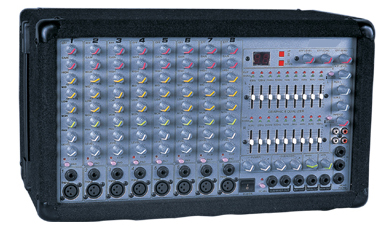

MP822
Features:
8 channel mono (Mic, Line) inputs
Mono 3 band EQ (Hi, Mid, Low) control
Each channel with Gain and level control
Each channel with AUX , Effect and Pan control
Each channel with Pad and wave distortion by LED indicator.
Digital effect with 16 bit displaying delay , repeat and level
control
Effect with send and return connector.
Record output and input connector
1 AUX , 1 phone ,and master outputs
Master output with 2X9 graphic equalizer.
With power amplifier(2X200W @8 ohms)

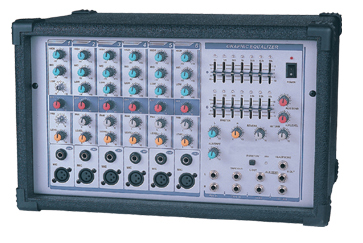

MP9062
Features:
channel mon(Mic, Line )inputs
Mono 3 band EQ (Hi, Mid, Low)control
Switchable global +48V phantom power on all mono inputs
Each Channel with level control
Each Channel with EFF and Pan control
Digital effect with reverb control
Effect with send and return connector
AUX and tape inputs with level control
Headphone output with level control
Master output with 2X7 graphic equalizer and each band with feedback
LED indicator
Output with SPEAKON and 1/4" jack connectors
With power amplifier(2X200 W @8 ohms) Bridge power output:650
W

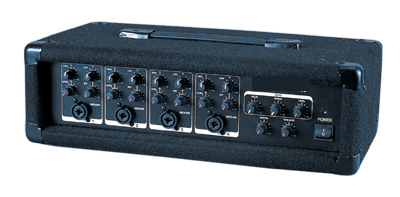

MP132
Features:
4 mono Mic/Line inputs with COMBO XLR-1/4TRS jacks
Amplifier delivers 100W @ 4 ohms total into 2 parallel speaker
output 1/4jack
Built in Digital effect with delay time, repeat and level control
Each channel with 2 band EQ ,effect and level control
Master section includes CD/Tape Level, Master Level and L,R Tape
IN and Tape Record Out RCA jacks
Rear panel Main Out/Amp In 1/4TRS jack unbalanced insert point
provides a break between the Main Out and the built-in amplifier,
allowing the output to be sent to an external signal processor
or additional power amplifier
Shielded internal power supply with ~115V(60Hz)/ ~230V(50Hz) select
switch and fused IEC power cord connector

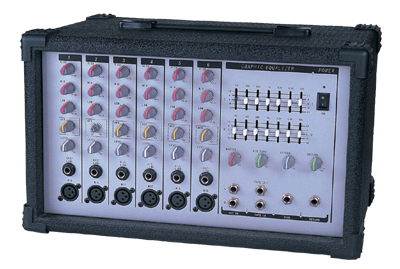

MP760
Features:
6 channel mon(Mic, Line )inputs
Mono 3 band EQ (Hi, Mid, Low)control
Each channel with Eff and Level control
Digital effect with reverb control
Effect with send and return connector
AUX and tape inputs with level control
Master output with 2x7 graphic equalizer
Output with 1/4" jack connectors
With power amplifier(2x200W @ 8 ohms)

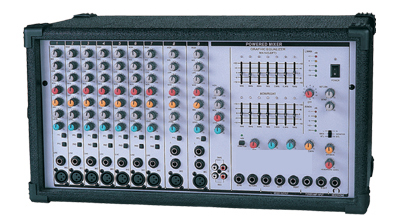

MP790DSP
Features:
7 mono and 2 stereo channels (Mix, Line) inputs
Switchable global +48V phwer on all mono inputs
Each channel with 3 band EQ (Hi, Mid, Low) control
Each channel with MON , EFF, PAN and LEVEL control
Each channel with PAD and PFL switch
DSP effects selector
AUX and tape inputs with level control
Headphone output with level control
Master output with 2x7 graphic equalizer and each band with feedback
LED indicator.
Output with APEAKON and 1/4" jack connectors
With power amplifier(2x200W @8 ohms Bridged output 650 W @8 ohms)
