Features：
Toroidal transformer, 12 8200u high resistance capacitors,
broader frequency range,less distor tion, more attractive tonal
effects
15 pairs of Motorola high wattage transistors, powerful output,
accurate reversion. heat tunnel structure, effective heatsink
One-body steel enclosure design. The transformer is secured from
above and below,
viberation proof, can resist pressure better.
Soft start at startup, transient proof design,better protecting
any connected equipments.
Efficient fan cooling system:the fan will word under low speed when
the heatsink’s
temperature is below 60 degree Celisius; it wil automatically adjust
the speed accordingly
when the temperature is between 60 to 80 degree Celisius.This keeps
the noise as low as possible.
Automatic limiter:by detecting the output signal.when the system
is overloaded,
autiomatically start signal amplitude limitation, to ensure the
speakers are not damaged.
other protections:overload,thermal, short circuit protection.
Utilizing international standard parts in circuit desigh, offering
higher stablility.
Suitable for gymnasium. large show ,disco, pub etc.

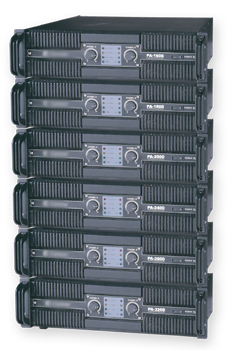

TYPE
NP1400
NP1600
NP1800
NP2200
NP2800
NP3200
8Ω STEREO POWER
2*400W
2*450W
2*500W
2*600W
2*800W
2*1000W
4Ω STEREO POWER
2*700W
2*800W
2*900W
2*1000W
2*1500W
2*1800W
8Ω BRIDGE STEREO POWER
1400W
1600W
1800W
2200W
2800W
3200W
SIZE(mm)
WEIGHT(kg)
Power Amplifiers 1
◆Balanced and unbalanced input.
◆2*10 LED indicator for output of power and wave distortion.
◆Time-delay startring protection,protections to the overload,overhot,short
circuit.
◆Low-voice tan to ventilate.
◆S/N ratio:≥100dB
◆Distortion:≤0.05% 5Hz~30KHz
◆Frequency speciality:0~-0.2dB 20Hz~20KHz
◆Channel segregation:≥56dB
◆Balanced input:10KΩ 0dB
◆Unbalanced input:10KΩ +4dB

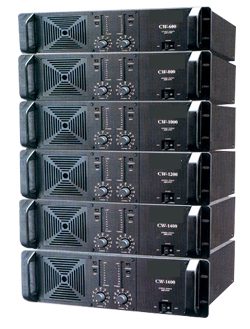

TYPE
600
800
1000
1200
1400
1600
8Ω STEREO POWER
2*170W
2*220W
2*270W
2*320W
2*380W
2*420W
4Ω STEREO POWER
2*300W
2*400W
2*500W
2*600W
2*700W
2*800W
8Ω BRIDGE MON POWER
600W
800W
1000W
1200W
1400W
1600W
SIZE(mm)
483*130*470
483*130*470
483*130*470
483*130*470
483*130*470
483*130*470
WEIGHT(kg)
17.60
18.75
20.25
21.40
23
25.2
Features：
Features and specifications:
Two channel independently
Time-delay starting protection and protections for the over loading,
over temperature, loads etc.
Low-noise fan to ventilate.
Power ,signal, Clip indicator
VU level meter display for each channel
Signal/Noise ratio?=104dB
Distortion(THD)?=0.1%
Power band with 10Hz-30KHz
Frequency response: less than +/-0.5dB (20Hz-20KHz)
Cross talk:?=70dB
Rated input level: 0dB
Input impedance: 10Kohms balanced

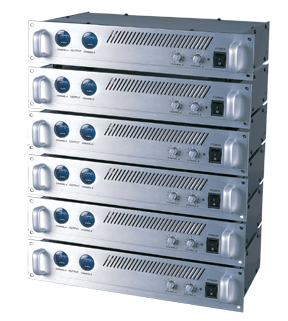

TYPE
5120
5140
5160
5180
51100
51120
OUTPUT POWER(8Ω)
2*100W
2*150W
2*200W
2*250W
2*300W
2*400W
OUTPUT POWER(4Ω)
2*150W
2*250W
2*325W
2*400W
2*475W
2*725W
SIZE(mm)
WEIGHT(kg)
13
15
17
18.5
20
21.5
Features：

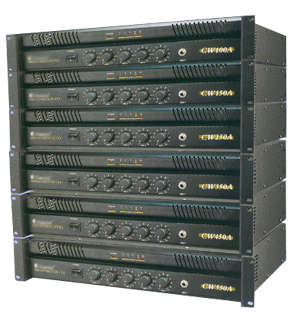

N series public broadcasting power amplifier with preamplifier
have four varieties, there are N100A, N150A, N250A, N350A, N450A,
N550A,these products can provide the output power separately 100W,150W,250W,
350W, 450W, 550W,they can be applied to the public broadcasting
invarious fields and the amplification of background music.
All of this series have a preamplifier. The unit has three microphone
inputs, and one is first with mute function; it has two line inputs,
they can be linked to all kinds of sources as CD, radio and recorder
etc. The level of microphones or lines can be adjusted separately.
The unit provides one line output, it can be used for recording
or linking to other amplifier. All these products are equipped
with reliable shortcut and overload protection.
The output methods of this series are 4-16ohm,70V and 100V(120V)
Mic input:600ohm-60dB.
Line input:10Kohm-20dB.
Talkover:0-30dB.
Frequency response:80Hz-16KHz
Distortion:<=0.1% 80Hz-16KHz.
S/N ratio: >=96dB
TYPE
N100A
N150A
N250A
N350A
N450A
N550A
OUTPUT POWER(8Ω)
2*100W
2*150W
2*250W
2*350W
2*450W
2*550W
OUTPUT POWER(4Ω)
SIZE(mm)
WEIGHT(kg)
Public Broadcasting Powers ◆3-mic input.
◆Mic1 with talk over.
◆2-line input.
◆1-line output
◆5 LED indicator for output.
◆Time-delay starting proection protections to the overload, overhot,
short circuit
◆Low-voice tan to ventilate.
◆Three output:4-16Ω, 70V, 110V.
◆Mic input: 600Ω-60dB
◆Line input: 10KΩ-20dB
◆Talkover: 0~-30dB
◆Frequency response: 80Hz~16KHz
◆Distortion: ≤0.1% 80Hz-16KHz
◆S/N ratio: ≥96dB
