TS-VH850

SPECIFICATION
Frequency Control: PLL Synthesized Function
Carrier Frequency: 858MHz-870MHz
Modulation: FM
Radiated Power: <10mW
Max. Input Level: Virtual Value 500mV (1kHz sine wave)
Transmitting Power Supply: DC 12V/300mA (Center Positive)
Receiver Power Supply: 2 x LR03 (AAA) Ni-MH 1.2V 850mA Chargeable Batteries
Frequency Response: 60Hz-15kHz
S/N Ratio: >45dB (1kHz sine wave, A- weighted)
Total Harmonic Distortion: <1%
Channel Separation: ≥30dB

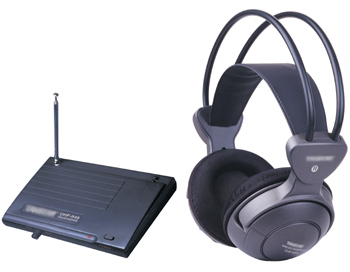

UHF-948

SPECIFICATION
TRANSMITTER
Carrier Frequency: 433MHz-433.7MHz
Radiated Power：≤7dBM
Max. Input Level: Virtual Value 500mV (1kHz sine wave)
Transmitter Power Supply: DC 12V/300mA (Center Positive)
Radiating Range: Approx. 80m
Operating Current: 50mA

RECEIVER
Carrier Frequency: 432.6MHz-434.1MHz
Receiver Power Supply: DC 3V, two 1.5V batteries
Operating Current: 20-35mA
Frequency Response: 70Hz-10kHz
S/N Ratio: ≥32dB
Total Harmonic Distortion：≤1%
Channel Separation：≥22dB

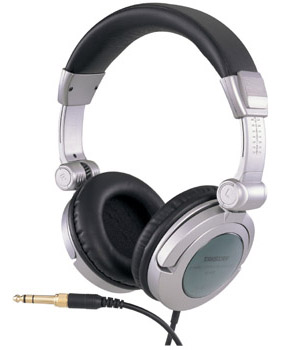

HP-630

SPECIFICATION
Type: Dynamic
Driver Diameter: ?50mm
Impedance: 32Ω
Sensitivity: 102dB
Frequency Response: 20Hz-20kHz
Power Handling Capability: 1500mW
Cable: 4mm x 1.2m Spring Cable
(Full stretch length approx 4m)
Adaptor Plug: Stereo?3.5mm+?6.3mm

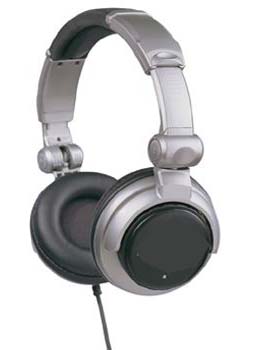

HP-520DJ

SPECIFICATION
Type: Dynamic
Driver Diameter: ?50mm
Impedance: 32Ω
Sensitivity: 102dB
Frequency Response: 20Hz-20kHz
Power Handling Capability: 1500mW
Cable: ?4mm x 1.2m Spring Cable (full stretch length approx. 4m)
Adaptor Plug: Stereo ?3.5mm+?6.3mm

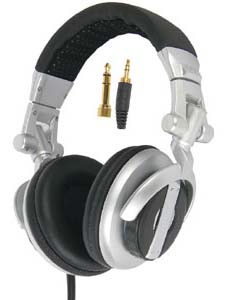

HP-850MD


Frequency Response: 100-18.000Hz
Impedance Headset: 32Ohms
Impedance Mic: 15kOhms
Sensitivity Headset: 105dB±2dB/mW
Sensitivity Mic: -58dB±2dB
Rated Power Headset: 300mW
Rated Power Mic: 0.5mA
Jack&Plug Headset: 3.5mm
Jack&Plug Mic: 3.5mm
Cord Length: 6-8ft

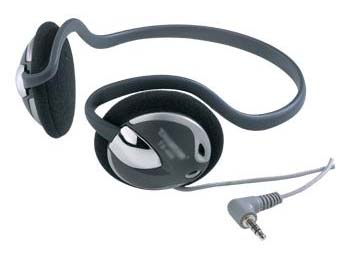

HP-406

SPECIFICATION
Type: Dynamic
Driver Diameter: Ф30mm
Impedance: 32Ω
Sensitivity: 102dB
Frequency Response: 20Hz-18kHz
Power Handling Capability: 100mW
Cable: Approx. 1.5m
Adaptor Plug: StereoФ3.5mm+Ф6.3mm

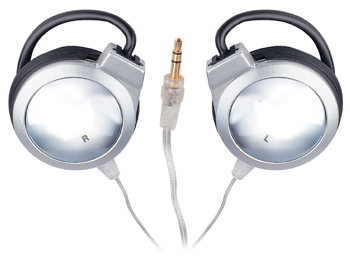

HP-386

SPECIFICATION
Type: Dynamic
Driver Diameter: ?30mm
Impedance: 32Ω
Sensitivity: 105dB
Frequency Response: 20Hz-20kHz
Power Handling Capability: 100mW
Cable: Approx. 1.5m
Adaptor Plug: Stereo ?3.5mm

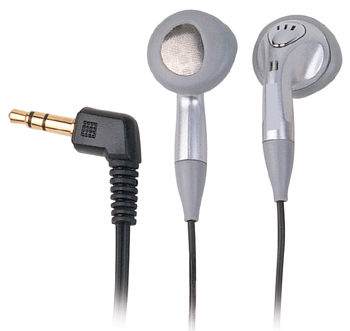

HP-2225
SPECIFICATION
Type: Dynamic
Driver Diameter: ?15mm
Impedance: 16Ω
Sensitivity: 102dB
Frequency Response: 20Hz-18kHz
Power Handling Capability: 100mW
Cable: Approx. 1.2m
Adaptor Plug: Stereo ?3.5mm
