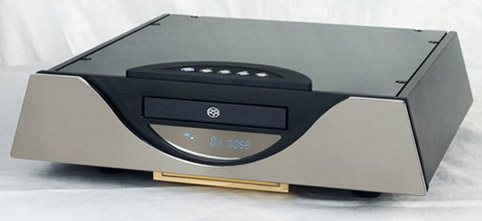

SACD

(1)SACD
Frequency Response：2Hz - 100KHz(±3dB)
Dynamic Range：>112dB(within available listening)
THD：≤ 0.001%
Simulated Output：XLR one group、RCA one group
(2)CD
Frequency Response: 2Hz - 20KHz
Dynamic Range：>100dB
THD：≤ 0.001%
Digital Output：Coaxial one group、Optical one group
Simulated Output：XLR one group、RCA one group

(3) Others
Size：503mm×487mm×210mm
Weight：11kg

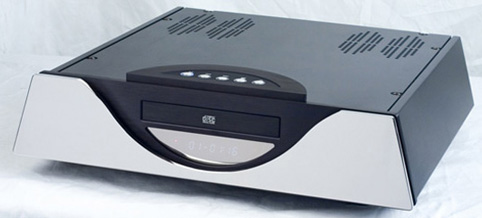

CDS2 TUBE


Frequency Response:2Hz～20kHz
Dynamic Range:≥100dB
THD:≤0.0010%
Simulated Output: Balanced one group, Unbalanced one group
Digital Output: Optical and Coaxial
Size :376X370X105mm
Weight:12kg

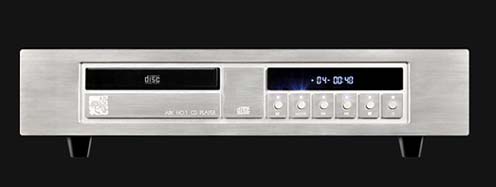

CDS1

Frequency Response: 2Hz～20kHz
Dynamic Range: ≥100dB
THD: ≤0.0020%
Simulated Output: Balanced one group, Unbalanced two group
Digital Output: Optical and Coaxial
Size:430X346X106mm
Weight:10kg

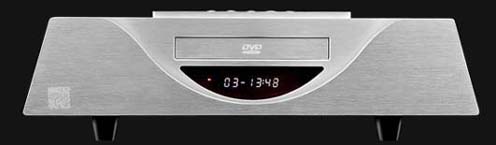

DVD2
 DVD2 and DVD1

Video
Video Signal Standard: EIA PAL/NTSC COLOR level pixes 550
Video S/N :75dB
Video DA transfer :14 bit/165MHZ
VIDEO :1Vp-p(75 Ohm load)
S-VIDEO : light core 1Vp-p(75 Ohm load)
Color Signal: 0.28Vp-p(75 Ohm load)
YUV :1Vp-p(75 Ohm load)
VGA :1Vp-p(75 Ohm load)
HDMI :HDMI-1.1 standard, support720p/1080i

Audio
5.1ch RCA output :2Vrms(0dB)
Frequency Response :5Hz---50kHz(-3dB)
S/N & Dynamic Range (24BIT/48K) :117dB(HDV-2800)、106dB(HDV-1800)
Sum THD(0dB) : 0.0015%(HDV-2800)、0.005%(HDV-1800)

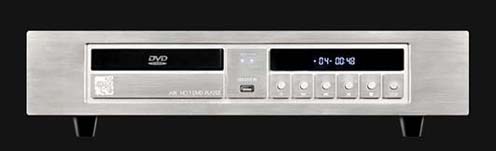

DVD1

Others
Power Supply : 220V AC(50Hz) or 110V AC (60Hz)
Power Rate: 20W
Volume: 376mmX370mmX105mm
Weight: 7.3kg
Using Temperature: 5℃-35℃
Using Wet: Relative Humidity 15－75%（no drop cohere）

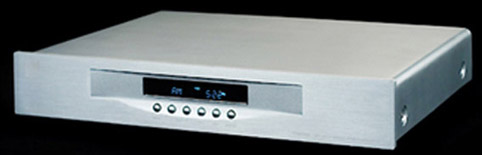

Radio Tuner

(1)FM
Tune Range: 87.5:108MHz
Mid-Frequency: 10.7MHz
S/N: >60dB
Frequency Response: 150:12000Hz

(2)AM
Tune Range: 522:1.611kHz
Mid-Frenquency: 450kHz

(3) Others
Simulated Output: Unbalanced (RCA)
Size : 376X370X105mm
Net Weight: 11kg

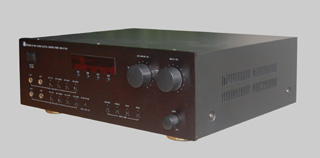

BDC800

Impedance(RMS)：8Ω
Output Power(RMS)：50W+50W（8Ω）
Frequency Response：80Hz-16kHz（±3dB）
THD：≤0.6（50W 1kHz）
S/N：≥76dB（A）
Sensitity(input mic)：＜8mV
Power Supply：~220V 50Hz or 110V 60Hz
Power：＜650W（8Ω load）
Max Power Not THD：140W+140W（8Ω）
Size：430W×350D×132H
