| SPECIFICATIONS: |
|
|
|

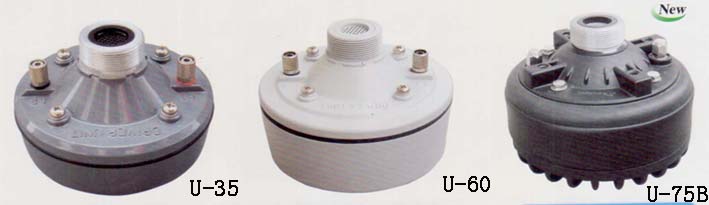

| MODEL |
U-35 |
U-60 |
U75B |
| IMPUT POWER |
35W RMS; 50W MAX |
60W RMS; 88W MAX |
75W RMS; 100W MAX |
| IMPEDANCE |
16 Ohm |
16 Ohm |
16 Ohm |
| FREQUENCY RESPONSE |
150-6000Hz |
180-10000Hz |
150-6000Hz |
| SPL at 1.5KHz |
113dB/1W/1M |
113dB/1W/1M |
113dB/1W/1M |
| HORM COUPLING |
|
1-3/8 18 TPI.(inch screw) |
|
| SIZE |
112(d)*90(d)mm |
125(d)*100(d)mm |
125(d)*98(d)mm |
| WEIGHT |
1.6KGS |
2.4KGS |
2.6KGS |
|
| SPECIFICATIONS: |
|
|
|
|

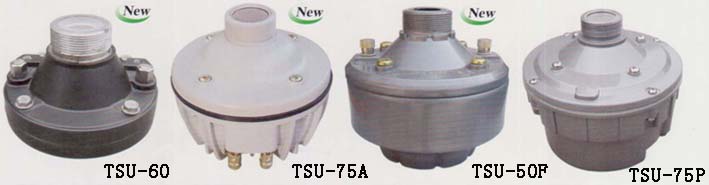

| MODEL |
TSU-60 |
TSU-75A |
TSU-50F |
TSU-75P |
| IMPUT POWER |
60W RMS; 80W MAX |
75W RMS; 90W MAX |
75W RMS; 90W MAX |
75W RMS; 90W MAX |
| IMPEDANCE |
8 Ohm |
16 Ohm |
16 Ohm |
16 Ohm |
| FREQUENCY RESPONSE |
200-6KHz |
180-7KHz |
160-6KHz |
150-10KHz |
| SPL at 1000Hz |
112dB |
114dB |
114dB |
113dB |
| HORM COUPLING |
|
1-3/8 18 TPI.(inch screw) |
|
|
| SIZE |
90(d)*66(d)mm |
112(d)*90(d)mm |
115(d)*110(d)mm |
140(d)*90(d)mm |
| WEIGHT(KGS) |
1.03 |
1.65 |
2.35 |
2.10 |
|
 |
|

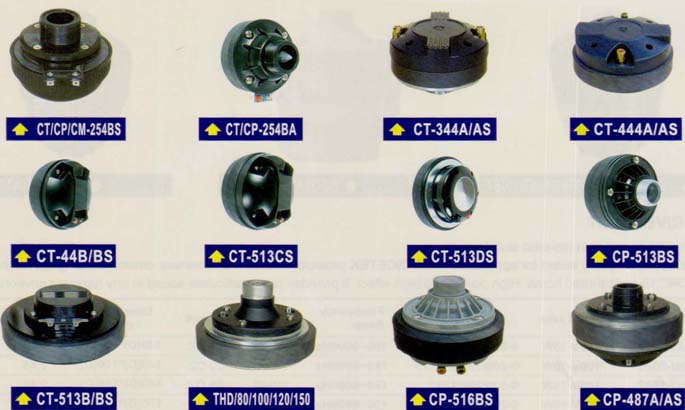

| MODEL |
INPUT RATE (Watts) |
IMPEDANCE (Ohm) |
FREQUENCY RESP. (KHz) |
SPL(1W/1M) |
MAGNET (OZ) |
SIZE(MM):D*D |
| CT/CP/CM-254BS |
30/30/20 |
8 |
800-18 |
115dB |
10 |
87*71 |
| CT-CP-254BA |
30 |
8 |
800-20 |
115dB |
10 |
80*65 |
| CT-344A/AS |
40 |
8 |
800-20 |
117dB |
12 |
90*65 |
| CT-444A/AS |
60 |
8 |
800-20 |
118dB |
30 |
115*75 |
| CT-44B/BS |
60 |
8 |
800-18 |
116dB |
25 |
115*65 |
| CT-513CS/CT-513DS |
100 |
8 |
800-18 |
118dB |
30/45 |
120*66,135*66 |
| CT-513B/BS |
120 |
8 |
800-10 |
115dB |
40 |
140*66 |
| CP-487A/AS |
75 |
8 |
800-13 |
110dB |
25 |
114*78,125*80 |
| CP-513BS |
50 |
8 |
500-13 |
110dB |
19 |
105*85 |
| CP-516BS |
100 |
8, 16 |
800-10 |
110dB |
30 |
125*85 |
| THD80/100/120/150 |
80/100/120/150 |
8 |
800-10 |
110dB |
20/25/30/40 |
110*78,110*80,120*80 |
|
