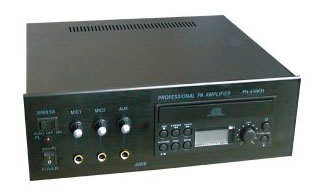

* Item Number:PD-450CD
*Power output: Rated:60W max:45W
*Output regulation:Less than 2dB no load to full load
*Outputs：Speaker output 60W VCD series:4Ω(20V) 8Ω(28.3V) 16Ω(40V)
25V 70V line out:1V±0.3V
* Frequency Response:20Hz a 20khz
*Harmonic distortion:1%
*S/N Rotie:<75dB * Tone Control:150Hz-15khz+-3dB
Inputs sensitivity:Mic-1.2(-42dB)
*6.3 jack input*AUX(-20dB)RCA jack
*MIC Input:unbalanced
*Control:3volume control,master volume,with Mp3
|
|
|

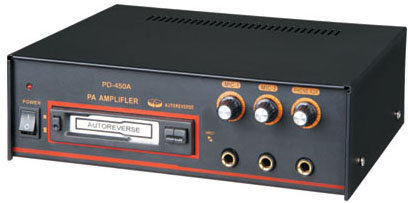

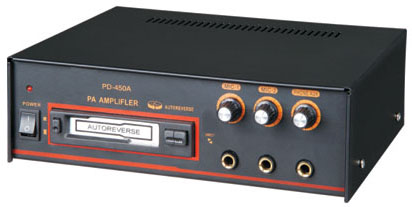

* item Number:PD-450A
* Two unbalanced 6.3mm jack inputs mic sensitivity.
* One auxiliary RCA mono input/Built-in cassette Player (AUTOREVERSE.)
* Final stages completely protected thermalshut down and short
protection./Mixer power amplifiers to 115V SERIES./dual power
supply in alternation current(115Vor 230V AC)power supply in direct
current(DC 12V)
* Rms output:Rms 35W
* Harmonic distortion:* Power supply:DC 12V or 115V/230V
*Output(Ω):COM,4Ω,8Ω,16Ω,70V
*Frequency response:150HZ---15KHZ.
* Input/sensitivity:MIC-1.2-45db/AUX-22Db
* Control:3-volume contrals/1---6.3mm jack(AUX)/1---POWERS SWITCH.
* Signal/noise ratio:AUX-IN>/=80Bd
* Weight:2.4kg(5.29lb).
* Dimensions:240(W)*220(D)*78(H)mm.
/(9.45"*8.7"-3")
IC 5198
N.Weight 2.4KG
|
|
|

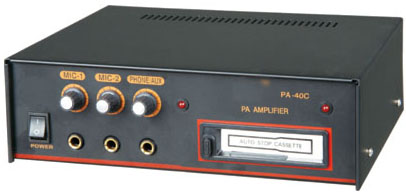

* item Number:PA-40CS
* Two unbalanced 6.3mm jack inputs mic sensitivity.
* One auxiliary RCA mono input/Built-in cassette Player (AUTOREVERSE.)
* Final stages completely protected thermalshut down and short
protection./Mixer power amplifiers to 115V SERIES./dual power
supply in alternation current(115Vor 230V AC)power supply in direct
current(DC 12V)
* Rms output:Rms 35W
* Harmonic distortion:* Power supply:DC 12V or 115V/230V Output(Ω):COM,4Ω,8Ω,16Ω,70V
frequency response:150HZ---15KHZ.
* Input/sensitivity:MIC-1.2-45db/AUX-22Db
* Control:3-volume contrals/1---6.3mm jack(AUX)/1---POWERS SWITCH.
* Signal/noise ratio:AUX-IN>/=80Bd
* Weight:2.4kg(5.29lb).
* Dimensions:240(W)*220(D)*78(H)mm.
/(9.45"*8.7"-3")
IC:TA7240
N.Weight 2.4KG
|
|
|
* item Number:PD-450C
* Two unbalanced 6.3mm jack inputs mic sensitivity.
* One auxiliary RCA mono input/Built-in cassette Player (AUTOREVERSE.)
* Final stages completely protected thermalshut down and short
protection./Mixer power amplifiers to 115V SERIES./dual power
supply in alternation current(115Vor 230V AC)power supply in direct
current(DC 12V)
* Rms output:Rms 35W
* Harmonic distortion:* Power supply:DC 12V or 115V/230V Output(Ω):COM,4Ω,8Ω,16Ω,70V
frequency response:150HZ---15KHZ.
* Input/sensitivity:MIC-1.2-45db/AUX-22Db
* Control:3-volume contrals/1---6.3mm jack(AUX)/1---POWERS SWITCH.
* Signal/noise ratio:AUX-IN>/=80Bd
* Weight:2.4kg(5.29lb).
* Dimensions:240(W)*220(D)*78(H)mm.
/(9.45"*8.7"-3
|
|
|

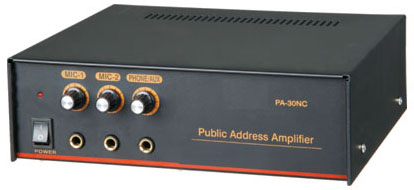

* item Number:PA-30NC
* Two unbalanced 6.3mm jack inputs mic sensitivity.
* One auxiliary RCA mono input/Built-in cassette Player (AUTOREVERSE.)
* Final stages completely protected thermalshut down and short
protection./Mixer power amplifiers to 115V SERIES./dual power
supply in alternation current(115Vor 230V AC)power supply in direct
current(DC 12V)
* Rms output:Rms 35W
* Harmonic distortion:* Power supply:DC 12V or 115V/230V Output(Ω):COM,4Ω,8Ω,16Ω,70V
frequency response:150HZ---15KHZ.
* Control:3-volume contrals/1---6.3mm jack(AUX)/1---POWERS SWITCH.
* Signal/noise ratio:AUX-IN>/=80Bd
* Weight:2.4kg(5.29lb).
|
|
|

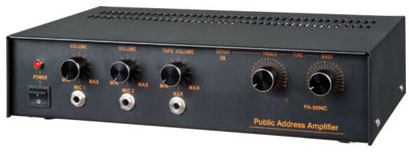

* item Number:PA-50NC
* Two unbalanced 6.3mm jack inputs mic sensitivity.
* One auxiliary RCA mono input/Built-in cassette Player (AUTOREVERSE.)
* Final stages completely protected thermalshut down and short
protection./Mixer power amplifiers to 115V SERIES./dual power
supply in alternation current(115Vor 230V AC)power supply in direct
current(DC 12V)
* Rms output:Rms 35W
* Harmonic distortion:* Power supply:DC 12V or 115V/230V Output(Ω):COM,4Ω,8Ω,16Ω,70V
frequency response:150HZ---15KHZ.
* Controls:3-volume contrals/1---6.3mm jack(AUX)/1---POWERS SWITCH.
* Signal/noise ratio:AUX-IN>/=80Bd
* Weight:2.4kg(5.29lb).
|
|
|

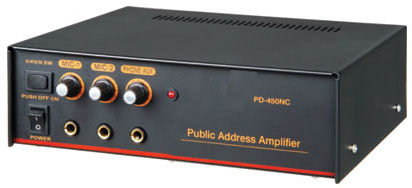

* item Number:PD-450NC
* Two unbalanced 6.3mm jack inputs mic sensitivity.
* One auxiliary RCA mono input/Built-in cassette Player
* Final stages completely protected thermalshut down and short
protection./Mixer power amplifiers to 115V SERIES./dual power
supply in alternation current(115Vor 230V AC)power supply in direct
current(DC 12V)
* Rms output:Rms 35W
* Harmonic distortion: * Power supply:DC 12V or 115V/230V Output(Ω):COM,4Ω,8Ω,16Ω,70V
frequency response:150HZ---15KHZ.
* Controls:3-volume contrals/1---6.3mm jack(AUX)/1---POWERS SWITCH.
* Signal/noise ratio:AUX-IN>/=80dB
* Weight:2.4kg(5.29lb).
|
|
|

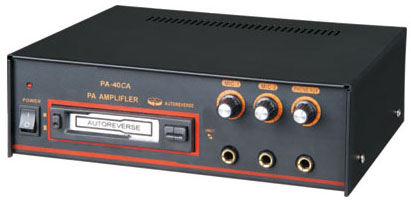

* item Number:PA-40CA
* Two unbalanced 6.3mm jack inputs mic sensitivity.
* One auxiliary RCA mono input/Built-in cassette Player (AUTOREVERSE.)
* Final stages completely protected thermalshut down and short
protection./Mixer power amplifiers to 115V SERIES./dual power
supply in alternation current(115Vor 230V AC)power supply in direct
current(DC 12V)
* Rms output:Rms 15W
* Harmonic distortion:* Power supply:DC 12V or 115V/230V
* Output(Ω):COM,4Ω,8Ω,16Ω,70V
* Frequency response:100HZ---20KHZ.
* Input/sensitivity:MIC-1.2-45db/AUX-22Db
* Control:3-volume contrals/1---6.3mm jack(AUX)/1---POWERS SWITCH.
* Signal/noise ratio:AUX-IN>/=80Bd
* Weight:2.4kg(5.29lb).
* Dimensions:240(W)*220(D)*78(H)mm.
/(9.45"*8.7"-3")
IC:TA7240
N.Weight:2.4KG
|
|
|

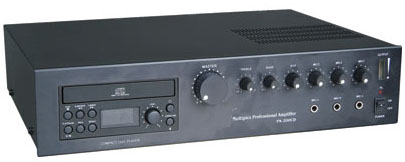

* item Number:PA-200CD
* Power output:
Rated:100W max:140W
Rated:150W max:210W
* Output regulation:Less than 2dB no load to full load
* Outputs：
Speaker output 100W CD series:4Ω(20V) 8Ω(28.3V) 16Ω(40V)
25V 70V 100V line out:1V±0.3V
Speaker output 100W CD series:4Ω(24.5V) 8Ω(34.7V) 16Ω(49V)
25V 70V 100V line out:1V±0.3V
* Frequency Response:50-15000Hz
* Total harmonic distortion:Less than 1% at 1KHz,rated power
* Signal to noise radio(Tone control centered) All volume
controls C.C.W:
AUX:80dB below rated power
Microphone:80dB below rated power |
* Tone controls
BASS:±10dB at 100Hz
TREBLE:±10dB at 10KHz
* Input AUX:20K Ohms,-18±2dB
MIC1-3:600ohms,-54±3dB(unbanced)
* Controls:MIC1-3 volume control CD/AUX volume control Tone
controls(BASS,TREBLE) MASTER volume control VOLUME SELECTOR
* Indicator:Power indicator(LED) LED output level Meter
* AC power supply 110-127/220-240 AC 50/60Hz*
* AC power consumption:220 WATTS at rated output 380 WATTS
at rated output
* Dimensions: 450mm(W)× 100mm(H) × 335mm(D)
* Weight:10.97Kg 12.35Kg
* Color Black
* Caution:The AC selector changed only by manufacturer. |
|
|
|

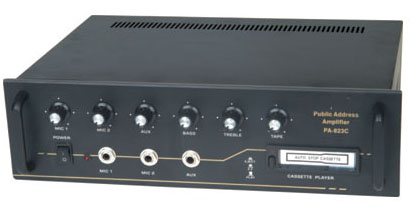

*item Number:PA-823C
*Power output:60w less then 3% THD at 1KHZ
*Frequency Response:20Hz-20Khz±3db
*Inputs:mic-1mic-2(-50dB) 10k 0hms/50k ohms aux(-20dB) 10k ohms
*Tone:treble:10KHz±10dB
bass:100Hz±10dB
*Speaker Impedance:4-160hm or 100v output
*Power Supply:AC 110V 220V 110V/220V DC 12v
*Dimenslons:360*280*110mm
Weight:5.6kg
|
|
|

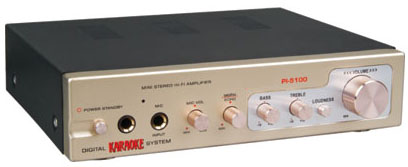

* item Number:PI-5100
* T.H.D.:<0.5%
* SIGNAL TO NOISE RATIO:≥80dB
* SEPARATION:≥50DB
* TONE:10KHz ±10Db 100Hz
* INPUT SENSITIVITY:1KHz 20W 200MV 1KHz HIGH 750MV
* FREQUENCY RESPONSE:±3dB 15Hz-20KHz
* OUTPUT POWER:THD0.1% 8Ω 15W+15W
* MIC'S INPUT SENSITIVITY:10MV
* ECHO DEPTH:≥3S
* ECHO LASTING LEVEL:200MS
* POWER CONSUMPTION:45W
* VOLTAGE:AC110V/50Hz/60Hz
SAFETY INSTRUCTIONS READ BEFORE OPERATING THE EQUIPMENT |
This product was designed and manufactured
to meet strict quality and safety standards.There are,however
some installation and operation precautions which you should
be particularly aware of.
1.All the safety and operating instructions should be read
before the product is operated and should be followed carefully.
2.Keep the set free from moisture,water,dust and avoid high
temperatures.Unplug the supply cord immediately when finding
unusual smell.
3.When the amplifier has been damaged,please take it to the
qualified service personnel or deal with according to the
insurance card.
4.The effect would be better after 15 to 20 minutes running
test.
5.The sets should not be placed close to heat sources such
as radiators,stoves,or any other appliance that produces heat.
|
|
 |

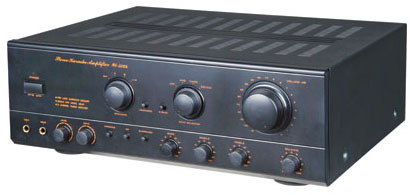

* item Number:AV-502A
*POWER switch-Press this button to turn on or off the unit.
*MIC INPUT jacks(MIC 1-2)-these are found at the lower left
side of the front panel.connect the microphones to the unit
through these jack.
*MIC LEVEL control-adjusts the volume of the microphones
*MIC ECHO control-controls the echo levels of MIC1 and MIC2.
*KARAOKE on/of button-press this button to turn the mic function
on/off.
*EQ on/off button-press this button to burn the equalizer
functon on/off.
*SURROUND on/of buffoon-press this button to turn the surround
speakers on/off.
*BASS control-adjusts the bass output level of the speakers.
MIDDLE control-adjusts the midrange output level of the speaders.
TREBLE control-adjusts the sound balance between the left
&right speakers.
MASTER VOLUME control-controls the volume level of speaders.
INPUT selector-point selector to the device you are going
to use.
SUPER BASS on/off button-press this button to turn the sub-bass
on/off. |
LOUNDNESS button-enhances the treble and bass sounds for
emphasis.
SPEAKER selector0use this to select what speakers to use between
A and B.
Make sure that the volume is turned to minium and that all
the need ed connections are secure before fuming the power
of your amplifier on.
Turn on the power of AV-502A together with the other components.
Select which set of speakers you want to use with the SPEAKER
Selector choose between A,B of A+B.
Use the input selector to select the audio source.
Adjust the volume,balance,bass,middle and tredle sounds until
desired sound level is achieved.
Use the SUPER BASS on/off button to turn on/off the powered
sub-woofer for deeper Bass sounds.
If a Graphic Equalizer is connected to the Amplifier, Push
the EQ button to turn the equalizer function on/off.Adjust
the equalizer until the vdesired sound level is achieved.
Connect the microphones to Mic jacks when needed.Don’f forget
to push the karaoke on/off button to tum the Mic funcion of/off.
Adjust the Mic level and Echo against the music source.
Sit down,relax and enjoy singing or listening to your favorite
tune or watching your favorift movie wifh AV-502A. |
|
|
|

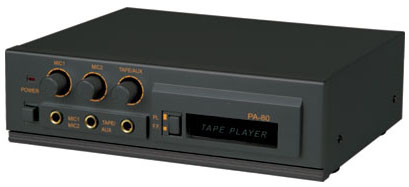

* item Number:PA-80
Rated:40W
Capacity:65W
Output sp-socket:4-8-16 70V 100V
|
|
|

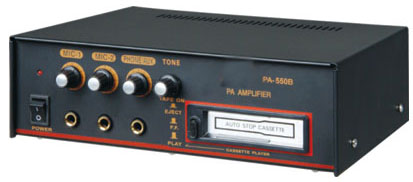

* item Number:PA-550B
Rated:15W
Capacity:40W
Output sp-socket:4-8
|
|
|

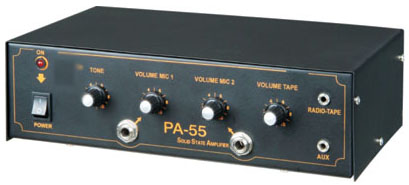

*item Number:PA-55
Rated:15W
Capacity:30W
Output sp-socket:4-16
|
|
|

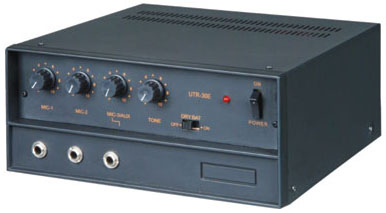

*item Number:UTR-30E
Rated:15W
Capacity:35W
Output sp-socket:4-8-16 70V 100V
|
|
|

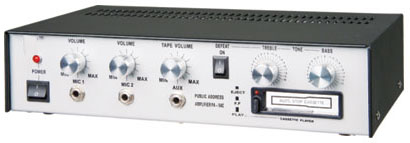

*item Number:PA-50C
Rated:35W
Capacity:50W
Output sp-socket:4-8-16 70V 100V
|
 |
* item Number:PA-50CS
Rated:35W
Capacity:50W
Output sp-socket:4-8-16 70V 100V
|
 |

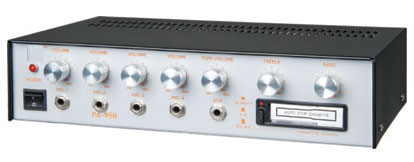

* item Number:PA-950
Rated:35W
Capacity:50W
Output sp-socket:4-8-16 70V 100V |
 |

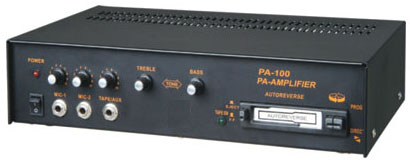

* item Number:PA-100
* AUTO STOP
* Tape level selection switch for pre-recorded tapes recorded at
different levels
* Carry handle for easy portability
* Power output(RMS):100W(max-120w)
* Inputs:4mic&1Aux
* Freq.response:55-13000Hz+/-3dB
* Tone controls:Cut & booost type bass & treble
* Speaker matching:4,8,16 ohm,100V line
* Dimensions:L310*D305*H120mm
* Welght:9.6Kgs |
 |

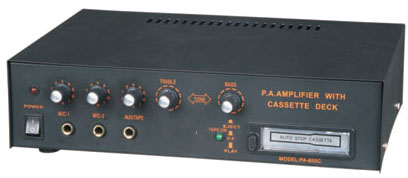

* item Number:PA-650
* AUTO STOP
* Tape level selection switch for pre-recorded tapes recorded at
different levels
* Carry handle for easy portability
* Power output(RMS):100W(max-120w)
* Inputs:4mic&1Aux
* Freq.response:55-13000Hz+/-3dB
* Tone controls:Cut & boost type bass & treble
* Speaker matching:4,8,16 ohm,100V line
* Dimensions:L310*D305*H120mm
* Welght:9.6Kgs |
 |

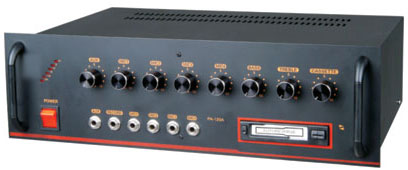

* item Number:PA-120A
* AUTOREVESRSE
* Tape level selection switch for pre-recorded tapes recorded at
different levels
* Carry handle for easy portability
* Power output(RMS):100W(max-120w)
* Inputs:4mic&1Aux
* Freq.response:55-13000Hz+/-3dB
* Tone controls:Cut & boost type bass & treble
* Speaker matching:4,8,16 ohm,100V line
* Dimensions:L310*D305*H120mm
* Welght:9.6Kgs |
 |

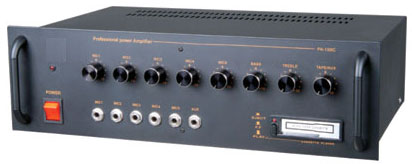

* item Number:PA-120C
* AUTO STOP
* Tape level selection switch for pre-recorded tapes recorded at
different levels
* Carry handle for easy portability
* Power output(RMS):100W(max-120w)
* Inputs:4mic&1Aux
* Freq.response:55-13000Hz+/-3dB
* Tone controls:Cut & boost type bass & treble
* Speaker matching:4,8,16 ohm,100V line
* Dimensions:L310*D305*H120mm
* Welght:9.6Kgs |
