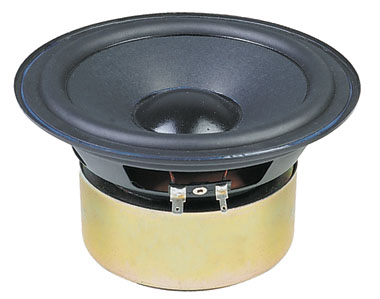

MODEL: TS-06
NominalDiameter(ins): 6.5
Magnet Diameter(mm): Shielder
Magnet Weight(oz): 18
Voice Coil Diameter(ins): 1.25
Former Material: Alu.
Coil Wire Section: Round
Frequency Range(Hz): 56-7 K
Sensitivity(dB,1W @ 1m): 87
Power Handing(Watt): 40
Nominal Impedance(Ohm): 8
Resonance,fs(Hz): 56
Volumr Vas(litres): 14.19
Total Dynamic Mass.Mmt(gm): 13.53
Total Q,Qts: 0.46
Bl Product,Bl(Tm): 5.95
Compliance,Cms(mm/N): 0.61
Coil Inductance@ 1kHz,Le(mH): 0.92
|
|
|

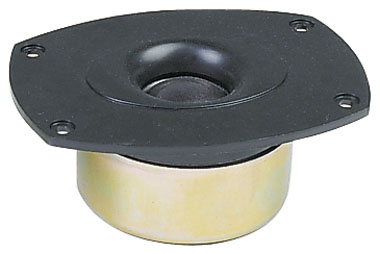

MODEL: TS-20
NominalDiameter(ins): /
Magnet Diameter(mm): Shielder
Magnet Weight(oz): 12
Voice Coil Diameter(ins): 1.0
Former Material: Kapton
Coil Wire Section: Round
Frequency Range(Hz): 2-19 K
Sensitivity(dB,1W @ 1m): 89
Power Handing(Watt): 20
Nominal Impedance(Ohm): 8
Resonance,fs(Hz): 2K
Volumr Vas(litres): /
Total Dynamic Mass.Mmt(gm): /
Total Q,Qts: /
Bl Product,Bl(Tm): /
Compliance,Cms(mm/N): /
Coil Inductance@ 1kHz,Le(mH): /
|
|
|

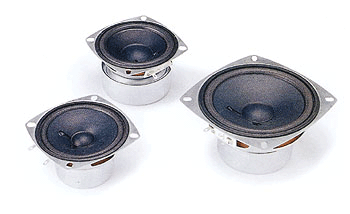

| MULTIMEDIA SPEAKERS |
| SPECIFICATIONS: |
MS7802-4 |
MS7803-4 |
MS10311-4 |
MS12002-4 |
| SIZE: |
3" |
3" |
4" |
5" |
| SPL 1M(2.83V): |
84dB |
86dB |
87dB |
88dB |
| FO(HZ): |
116 |
105 |
101 |
91 |
| RESPONSE(HZ): |
fo-14000 |
fo-18000 |
fo-15000 |
fo-15000 |
| NOM.IMP(ohm): |
4 |
4 |
4 |
4 |
| VOICE COIL: |
0.6" |
0.8" |
0.8" |
0.8" |
| MAGNET SIZE |
1.70+0.72 |
4.03+2.41 |
4.03+2.41 |
4.03+2.41 |
| MAXIMUM POWER(Watt): |
10 |
12 |
16 |
20 |
| BL(TM): |
1.8 |
3.0 |
2.7 |
3.2 |
| VAS(L): |
1.4 |
1.8 |
2.9 |
4.6 |
| Qms: |
5.48 |
5.21 |
5.07 |
5.39 |
| Qes: |
1.36 |
1.23 |
1.01 |
0.97 |
| Qts: |
1.09 |
0.98 |
0.84 |
0.83 |
|
|
